Continuing Stag's range of high quality electrical components at low prices, are the latest addition to our range of products - Stag Cable Glands.

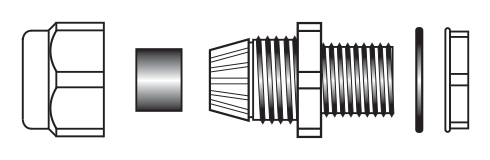

Manufactured to the same exacting standards of all our products, Stag Cable Glands are IP68 rated, and include the sealing washer and locking nut as standard. All glands are constructed with a metric thread, and are available in M12 to M63 sizes, with four colour options: white, black, grey and red.
Stag Cable Glands are manufactured in high strength nylon material and are available in 10 different metric thread sizes from M12 to M63 as follows:
| Part Number | Metric Thread | Cable Diamater | Colours Available | Approvals |
|---|---|---|---|---|
| SCG/M12 | M12 | 3mm - 6.5mm | White, Grey, Black, Red |   |
| SCG/M16 | M16 | 4mm - 8mm | White, Grey, Black, Red | |
| SCG/M20 | M20 | 6mm - 12mm | White, Grey, Black, Red | |
| SCG/M20L | M20 | 10mm - 14mm | White, Grey, Black, Red | |
| SCG/M25 | M25 | 9mm - 16mm | White, Grey, Black, Red | |
| SCG/M25L | M25 | 13mm - 18mm | White, Grey, Black, Red | |
| SCG/M32 | M32 | 18mm - 25mm | White, Grey, Black, Red | |
| SCG/M40 | M40 | 22mm - 32mm | White, Grey, Black, Red | |
| SCG/M50 | M50 | 30mm - 38mm | White, Grey, Black, Red | |
| SCG/M63 | M63 | 34mm - 44mm | White, Grey, Black, Red | |
Colour: White
Colour: Red
Colour: Black
Colour: Grey
All information correct at the time of publishing. Errors & omissions excepted. Found at all good wholesale electrical trade counters throughout Australia.
