The Stag range of Enclosures are available in 9 different sizes from 80mm round to 380x300x120mm enclosure with hinged lid.
Built to the most rigorous standards with features such as pre-moulded slots for DIN-rail or terminal block attachment, stainless steel locking screws and fast release hinged lid on the largest models, Stag really does supply a user-friendly, high quality enclosure solution for every application, and all at highly competitive pricing.
Made from high strength technical polymer material, and offering protection levels from IP44 o IP56 dependant upon model, the entire Stag Enclosure range include double insulation in accordance with CEI 64-8 standards, as well as being CEI IEC EN 60 670-1, CEI IEC EN 60 670-22 and CEI 23/48 compliant for both domestic and commercial applications.

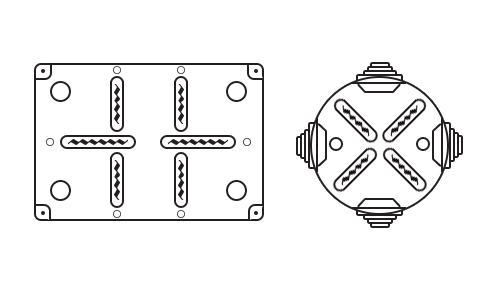

Stag Enclosures are manufactured in high strength polymer material and are available in 9 different sizes as follows:
Part Number | Description | Dimensions | Lid Type | IP Rating | Approvals |
---|---|---|---|---|---|
SE02 | Round Enclosure inc. glands | ∅80x40mm | Clip-on | IP44 | CEI 64-8, CEI 23/48 |
SE03 | Square Enclosure inc. glands | 80x80x50mm | Clip-on | IP44 | CEI 64-8, CEI 23/48 |
SE04 | Square Enclosure | 100x100x50mm | Screw-on | IP56 | CEI 64-8, CEI 23/48 |
SE05 | Rectangular Enclosure | 120x80x50mm | Screw-on | IP56 | CEI 64-8, CEI 23/48 |
SE06 | Rectangular Enclosure | 150x110x70mm | Screw-on | IP56 | CEI 64-8, CEI 23/48 |
SE07 | Rectangular Enclosure | 190x140x70mm | Screw-on | IP56 | CEI 64-8, CEI 23/48 |
SE08 | Rectangular Enclosure | 240x190x90mm | Screw-on | IP56 | CEI 64-8, CEI 23/48 |
SE09 | Rectangular Enclosure | 300x220x120mm | Screw-on, hinged | IP56 | CEI 64-8, CEI 23/48 |
SE10 | Rectangular Enclosure | 380x300x120mm | Screw-on, hinged | IP56 | CEI 64-8, CEI 23/48 |
Stag Enclosure Accessories as follows:
Part Number | Product Type | For Use With | Compliance |
---|---|---|---|
SEBP07 | Metal Base Plate (170 x 130mm) | For Use With SE07 | EN 61140 |
SEBP08 | Metal Base Plate (222 x 178mm) | For Use With SE08 | EN 61140 |
SEBP09 | Metal Base Plate (287 x 207mm) | For Use With SE09 | EN 61140 |
SEBP10 | Metal Base Plate (362 x 282mm) | For Use With SE10 | EN 61140 |
∅80 x 40mm
240 x 190 x 90mm
380 x 300 x 120mm
Base Plate 170 x 130mm
